Sensing, in all its types, is essential to a lot of applications. It usually entails a material that works as a transducer, to convert one building to one more. In electronic devices, the sensing element will have physical buildings that change as a result of the action of sensing, such as its resistance or reactance enabling the dimension of a modification in either present or voltage.

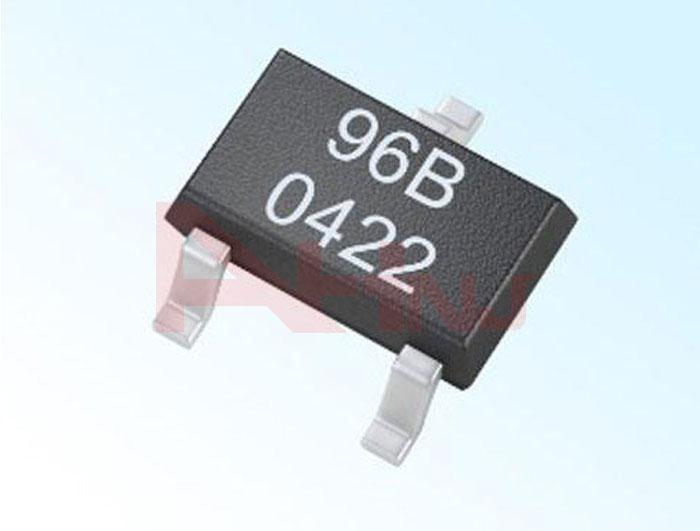

Linear Hall Sensor

Hall Impact

The Hall impact, as related to sensors, manifests either as a measurable voltage distinction throughout a conductor whereby a constant current must be present, or as a measurable present distinction across a conductor through which a constant voltage should be moving ( Fig. 1). The voltage difference is symmetrical to the toughness of an electromagnetic field. This means the Hall impact can be utilized in 2 very details methods, although the hidden effect coincides in both cases.

Hall-Effect Current Sensing

The reality that the Hall result depends on an electromagnetic field implies it can be made use of as a contactless modern technology. Therefore, it's non-intrusive, unlike the most typical means of current sensing, which consists of utilizing a low-value resistor as a shunt as well as determining the voltage drop throughout it. Utilizing the Hall effect for present dimension is naturally robust in high-power applications, due to the fact that it doesn't count on the ground possibility as a reference.

With a standard Hall-effect current sensor, this implies putting the sensor vertical to the magnetic field as well as utilizing a concentrator, generally a ferromagnetic core that's shaped as either a ring or square, positioned around the conductor lugging the present to be measured. The sensor would normally be kept in a tiny air void developed in between both ends of the ferromagnetic core.

Hall-Effect Position Sensing.

The exact same principle can be utilized to identify the existence, absence, or distance of an electromagnetic field. Efficiently, the Hall voltage that results from the motion of a magnet in addition to the sensing units can be identified, enhanced, and also processed. This provides an opportunity to utilize the Hall effect to identify the position or even the positioning of things with respect to the sensor.

In a basic application this may be reasonably coarse, such as when a laptop is open or shut. Or it might be a lot more innovative when it's used to spot direct motion or turning, such as the variation in position of a movable item. In this respect, utilizing the Hall result for position sensing is much more flexible than its usage as a present sensor.
